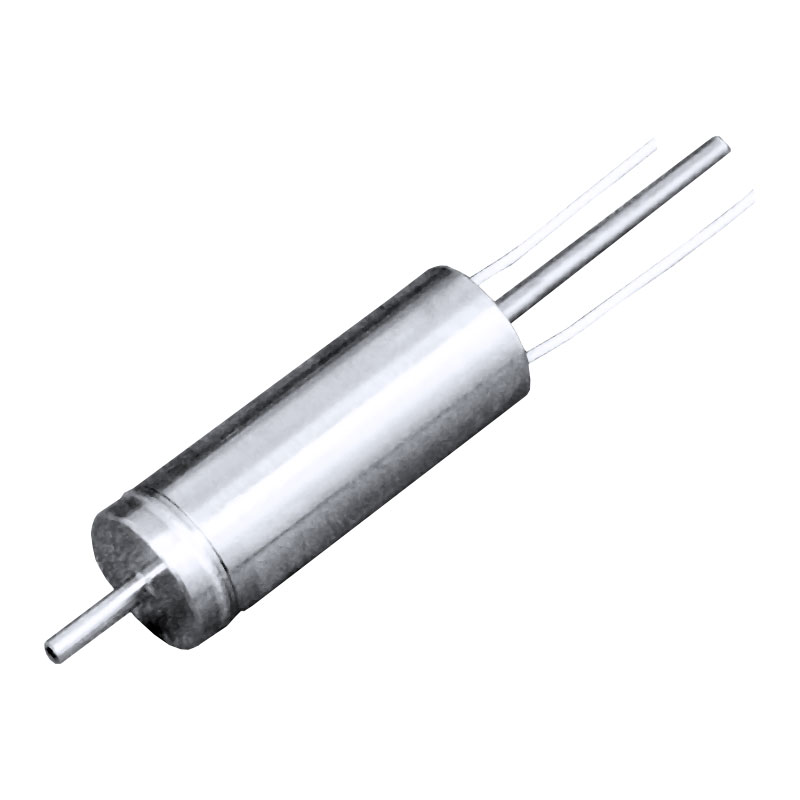

HVD/HVDL Satellite Propulsion Valve - 10 MPa

Latching version available

Description

10 MPa pressure rating.

Compact and lightweight.

Model Number	HVD-2-N1F	HVDL-2-N1F
Solenoid Type	Normally Closed	Latching
Orifice Diameter	0.4 mm	0.4 mm
CV Value	0.0045	0.0045
Port Connection	Pipe	Pipe
Operating Pressure Range	0 - 10 MPa (Inlet Port)	0 - 10 MPa (Inlet Port)
Temperature Range	0 - 70 ˚C *1	0 - 70 ˚C *1
Rated Voltage	12 VDC	12 VDC
Holding Voltage	3 VDC	N/A
Power Consumption	11 W (Rated Voltage) 0.7W (Holding Voltage)	10 W
Duty Cycle	Intermittent ED: 15% (Maximum On Time: 1.0s) with holding Voltage: Continuous	Intermittent ED: 20% (Maximum On Time: 0.05 - 0.1s)
Sealing Material	FKM (Optionally FFKM)	FKM (Optionally FFKM)
Outer Dimensions	Dia. 10 × L55 mm	Dia. 10 × L55 mm
Weight	14g	14g

*1: The temperature range may change depending on the sealing material.

Note: Details including specifications may change at any time without notification.
